Part No.
|

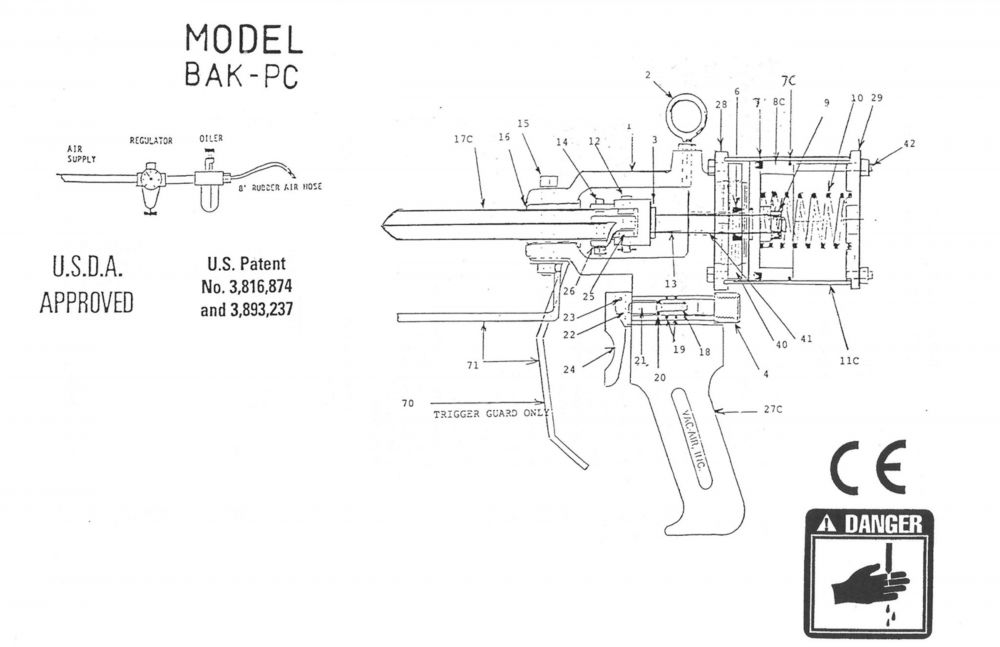

BAK-PC Parts List
|
| 1 |
Body with trigger guard |
| 2C |
Eyebolt |
| 3 |
Cushion |
| 4 |
Valve air coupling |
| 6 |
Piston shaft seal |
| 7 |
Piston Cup O-Ring |
| 7C |
Piston seal |
| 8C |
Piston |
| 9 |
Locknut and washers |
| 10 |
Spring |
| 11C |
Cylinder body |
| 12 |
Piston shaft pin and cotter key |
| 13 |
Piston shaft |
| 14 |
Blade shoulder bolt S.S. |
| 15 |
Blade hinging body bolt, locknut |
| 16 |
Set of brass shoes |
| 17 |
Set of blades standard (small radius & straight) |
| 17C |
Set of radius blades |
| 17S |
Set of straight blades, 4" opening |
| 18 |
Air intake o-ring |
| 19 |
Static o-ring (2) |
| 20 |
Air exhaust o-ring |
| 21 |
Air valve |
| 22 |
Brass air body |
| 23 |
Trigger pin |
| 24 |
Trigger and set screw - short |
| 25 |
Outside hinging plates |
| 26 |
Inside hinging arm |
| 27C |
Handle and set screw |
| 28 |
Body Plate |
| 29 |
End Plate |
| 30C |
Complete set of o-rings #3,5C,6,7C,18,20 & 19(2) |
| 31 |
Trigger o-ring kit #18,20 & 19(2) |
| 40 |
Body nut |
| 41 |
Brass bushing |
| 42 |
Cylinder bolt |
| 43 |
45 degree elbow |
| 44 |
Trigger assembly #4,18,20,21,22,23,24 & 19(2) |
| 50 |
Hose quick disconnect |
| 59 |
Regulator, lubricator assembly #60,61,62,63 &50 |
| 60 |
Regulator |
| 61 |
Lubricator |
| 62 |
Gauge |
| 63 |
8' Rubber Hose |
| 64 |
10 lb. reel tool balancer S.S./nylon |
| 66 |
Electric blade sharpener |
| 67 |
Blade sharpener stone |
| 68 |
O-ring extractor kit |
| 69 |
Spare parts kit #30C,12,15,14(2), & 10A(2) |
| 70 |
Trigger guard |
| 71 |
Double safety guard |
| |
|
